Residetial/Commercial Off Grid solar power system
Rated Power :
10-40KWInstallation :
Roof/GroundOutput Voltage :
220VSolar System Protection :
Overloads, Low Voltage and Under Voltage (Alarm)Panels Type :
Mono PERCOutput Frequency :
50/60HzTotal electrical independence starts here.WEUP Power has carefully designed and engineered all of our packaged off-grid solar power systems to be faster and easier to install. Our Off-Grid solar kits produce zero emissions, are noiseless,and equipped with all-in-one packaging solution for quick and easy installation Standard Grid-tie systems will not provide electricity directly to your house during a power outage due to safety regulations(anti-islanding) even if the solar modules are producing DC current.Our Off-Grid systems are independent of the standard utility grid, and can typically deliver the equivalent expectations of the traditional grid.Whether you will be using an off-grid solar system for your remote cabin, your place of business, or your full-time residence, WEUP Power has an off grid solution that can fit almost any installation requirement. WEUP Power off-grid kits are able to be expanded in the future.
|
Product Benefits
|
PV Kits
|
Application Installation sites where bringing in the electricity from the grid is too expensive or difficult Locations where liquid fuel costs are too high or difficult to maintain Those looking to be completely independent from the grid Those who cannot afford to lose power or have power outages |
Specifications
| Model | 10KW | 15KW | 20KW | 30KW | 40KW |
| 460W Solar Panel(PC) | 21 | 24 | 32 | 50 | 84 |
| Combiner Box | 3 inputs 1 output | 3 inputs 1 output | 4 inputs 1 output | 5 inputs 1 output | 6 inputs 1 output |

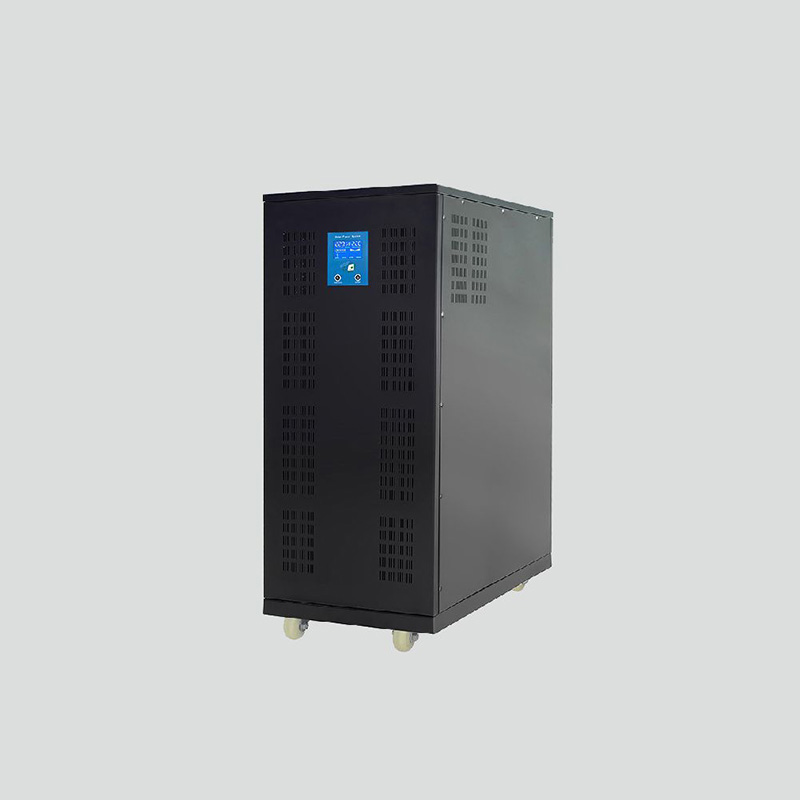

| Off Grid Inverter(Set) | 10KW | 15KW | 20KW | 30KW | 40KW |

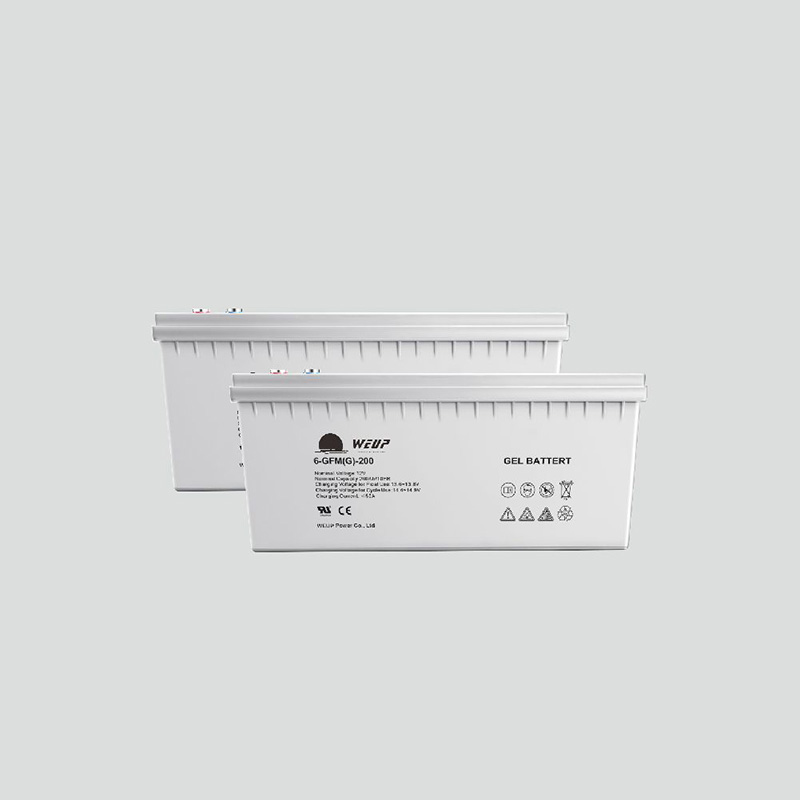

| 12V 200AH Battery(PC) | 16 | 16 | 16 | 20 | 32 |
| DC Cable(M) | 400 | 600 | 800 | 1000 | 1200 |
| MC4 Connector(Pair) | 10 | 20 | 30 | 40 | 50 |

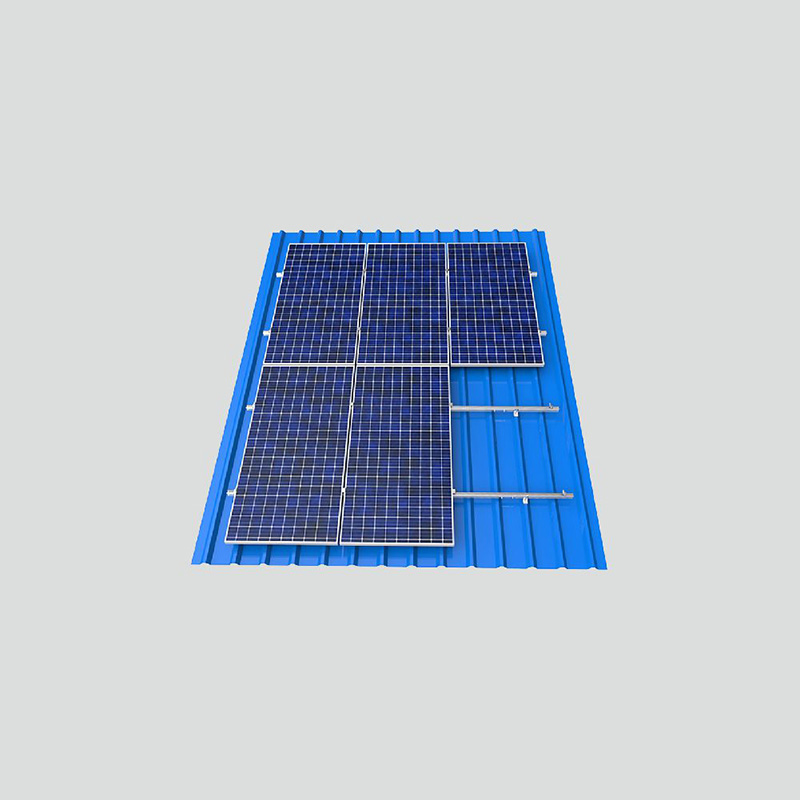

| Mounting System | Metal/Flat/Pitched Roof ( Customized) | ||||
Connection View
Residetial/Commercial Off Grid solar power system
