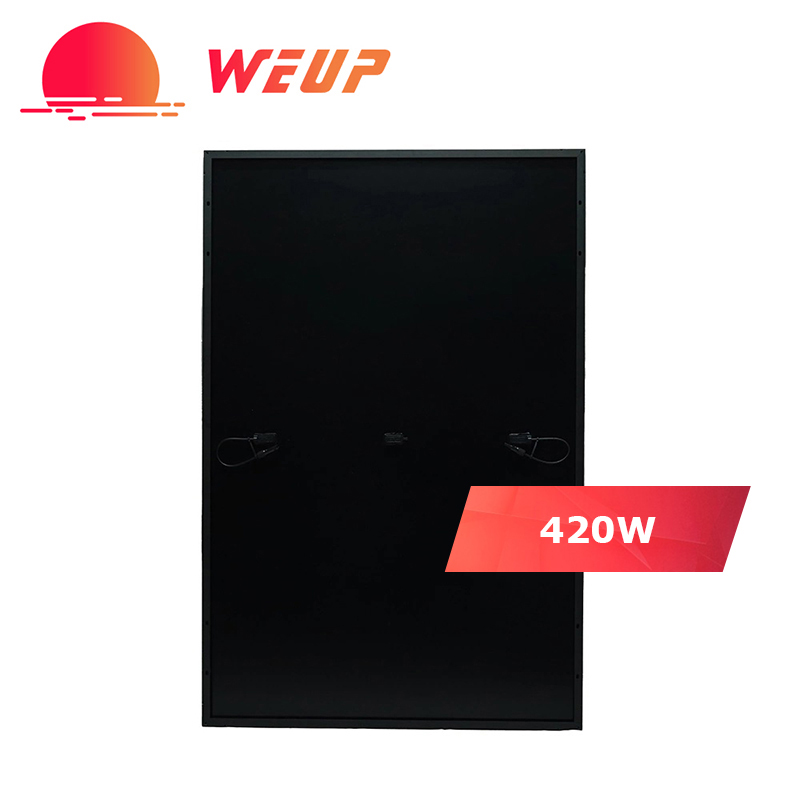

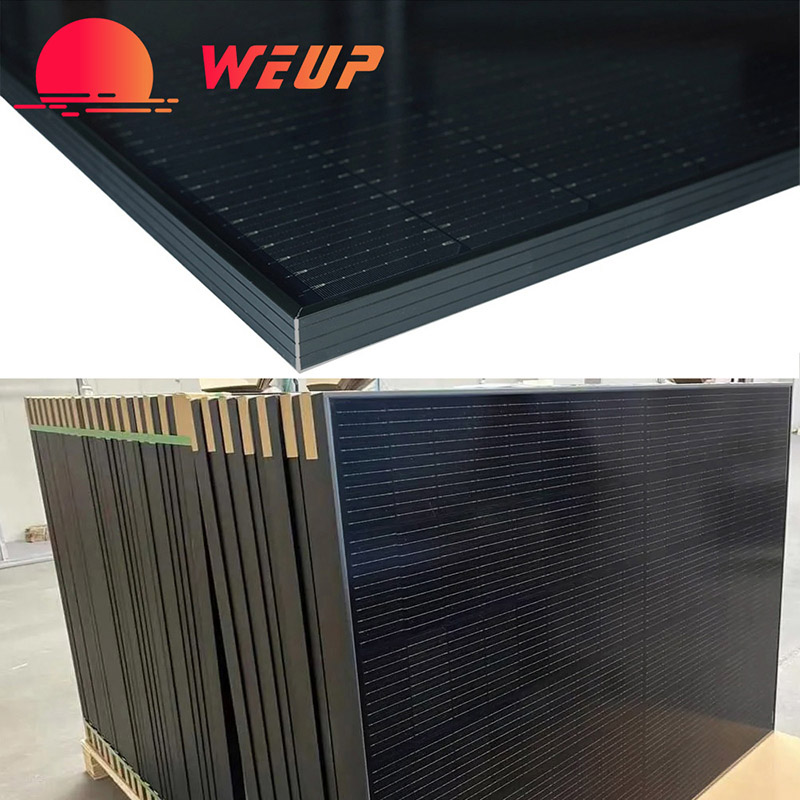

420W Full Black 10BB Mono PERC 182mm Half Cell PV Solar Panel

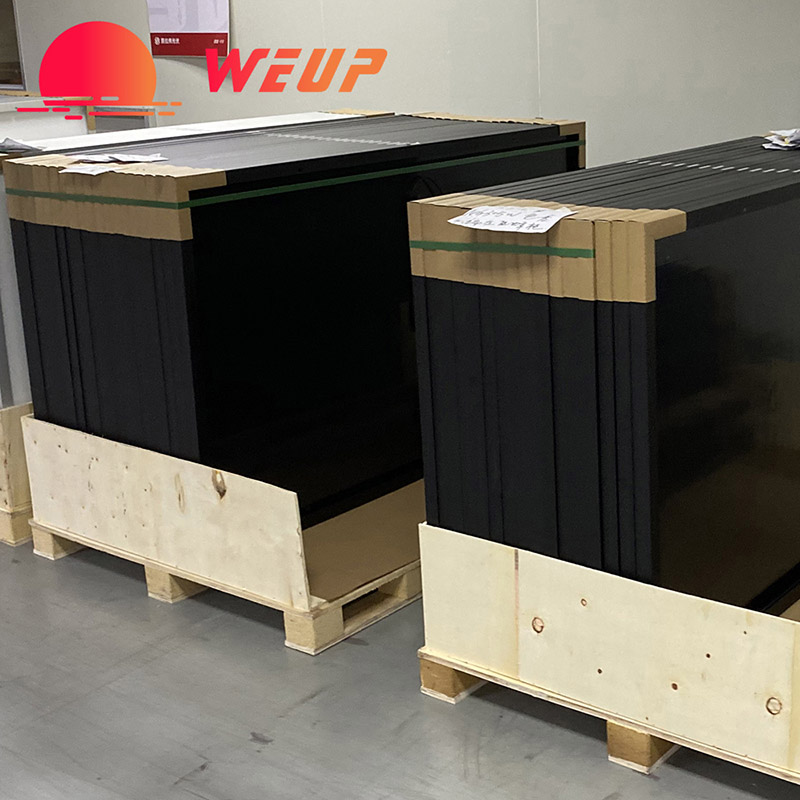

Large-format modules with M10 wafer size use frame packaging to ensure module strength. Monocrystalline PERC cells is more efficient, Low current density technology effectively reduces the internal power consumption of components. MBB and half-chip technology to reduce the impact of hidden cracks and shading on module power generation Lower system and labor costs.

Technology

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
	Half-cut cell is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module's power increases. The reliability of module is also enhanced.The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.

Materials

12%  Ultra Clear Tempered Glass.	Higher Efficiency, 9BB Cells	120N Tensile Strength Frame

120N Tensile Strength Frame	4mm² Qualified cable with MC4	High Transmittance EVA

Electrical Specification

​

Model			410W	415W	420w
Max Power(Pmax) [W]			410	415	420
Open Circuit Voltage(Voc) [V]			37.50	37.70	37.90
Short Circuit Current(Isc) [A]			13.88	13.96	14.04
Max Power Voltage(Vmp) [V]			31.60	31.80	32.00
Max Power Current(Imp) [A]			12.98	13.06	13.14
Module Efficiency [%]			20.99	21.25	21.51
Power Tolerance			0-5W
Max System Voltage			DC 1500/1000(IEC)
Max Series Fuse Rating			20A
Operating  Temperature			-40   to + 85ºC
STC			Irradiance 1000W/m², cell temperature 25ºC, AM1.5

​

Certifications

• ISO 9001: 2015: ISO Quality Management System
• ISO 14001: 2015: ISO Environment Management System
• ISO 45001: 2018: Occupational Health and Safety
• CE & EU declaration of conformity
• IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
• IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
• IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
• UL1703 / UL 61730 – PV Module Safety Standards

Features

1. PERC technology improves efficiency, increases power generation, and contributes to lower LCOE.

2. Lower Heatspot Risk. Innovative circuit design and "Half Cell" structu re decrease the temperature of heatspots and effectively reduce power loss.

3. Reliable performance in low-light conditions such as in the morning,at dusk or during raining days.

4. Carefully selected materials ensure the module still works well underthe condition of 2400Pa wind load and 5400Pa snow load.

5. High quality solarcelland advanced processing technology contribute to excellent PID resistance performance.

6. 12 years products warranty and 25 years linear output power warranty.
