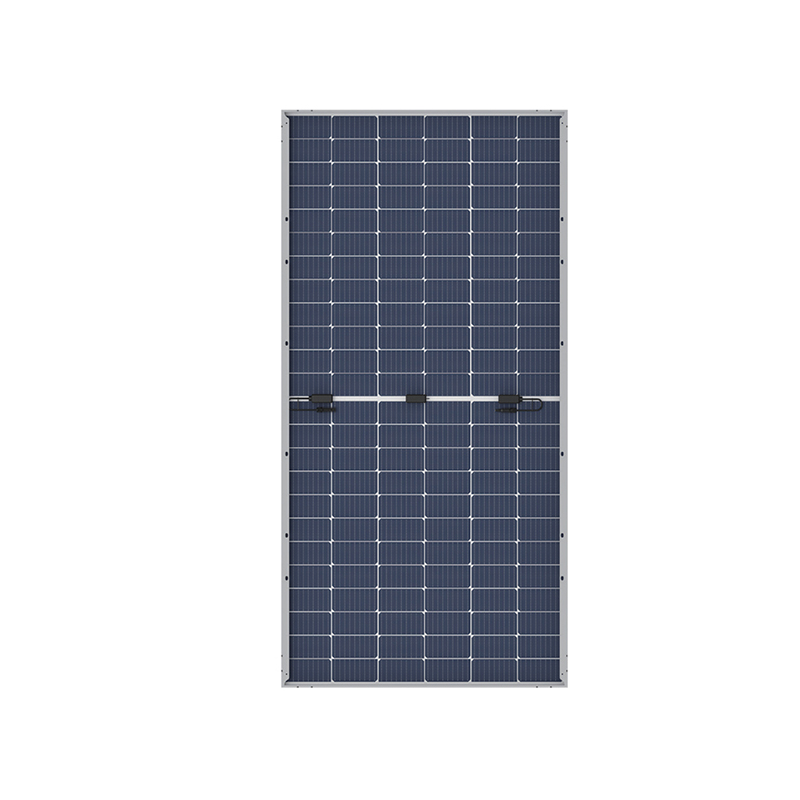

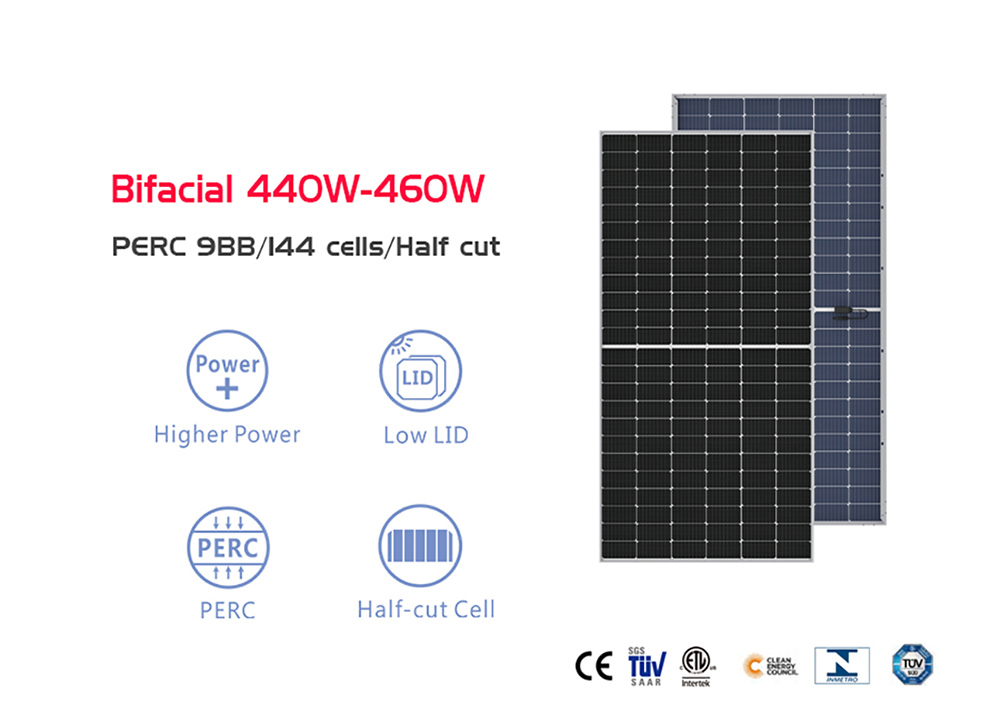

460W Bifacial PV Solar Panel Double Glass Solar Module

The DC/AC ratio can also be significantly improved when the series inverter is used.Using M6 standard wafer, high efficiency PERC cell with low LID and LeTID, excellent energy yield performance. Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Technology

The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
	Half-cut cell is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module's power increases. The reliability of module is also enhanced.The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.

Materials

12%  Ultra Clear Tempered Glass.	Higher Efficiency, 9BB Cells	120N Tensile Strength Frame

120N Tensile Strength Frame	4mm² Qualified cable with MC4	High Transmittance EVA

Electrical Specification

Certifications

• ISO 9001: 2015: ISO Quality Management System
• ISO 14001: 2015: ISO Environment Management System
• ISO 45001: 2018: Occupational Health and Safety
• CE & EU declaration of conformity
• IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
• IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
• IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
• UL1703 / UL 61730 – PV Module Safety Standards

Features

• Up to 460W front power and 21.2% module efficiency with half-cut and MBB (Multi Busbar) technology bringing more BOS savings
• Lower resistance of half-cut and good reflection effect of MBB ensure high power
• Ensured PID resistance through cell process and module material control
• Resistant to salt, acid and ammonia
• Proven to be reliable in high temperature and humidity areas
• Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative load
• Better anti-shading performance and lower operating temperature
• Frame design makes module compatible with different racking and installation methods
