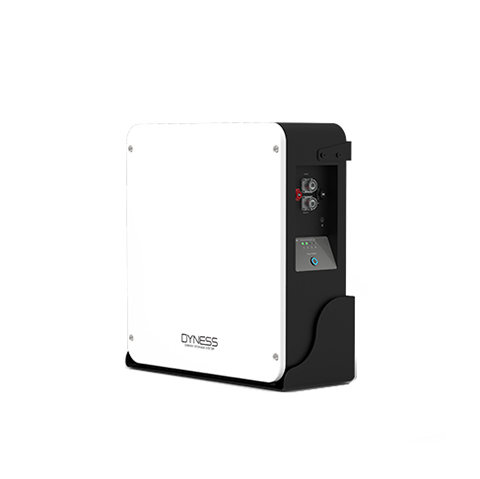

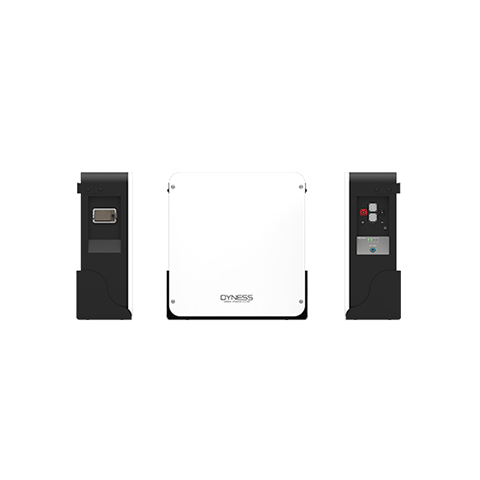

The PowerDepot H5B is main series lithium battery with efficient and durable LiFePO4 modules, offers you high safety performance, widely used in photovoltaic and home energy storage systems.
Battery Type :
LiFePO4Capacity :
5.12kWhVoltage :
51.2VWeight :
55kgDimensions :
574*228*600mmDyness PowerDepot H5B have long cycles and deep DOD with smart BMS, can give full play to the performance and prolong the life of the battery.
◆TUV Certified
◆CEC Accredited
◆IP65 Protection
◆Flexible Expansion
| Battery Type | LiFePO4 | |||
| Nominal Battery Energy | 5.12kWh | |||
| Battery Capacity | 100Ah | |||
| Nominal Voltage | 51.2V | |||
| Working Voltage | 44.8-57.6V | |||
| Max Output Power | 5.12kW | |||
| Max Charge/Discharge Current | 90A /100A | |||
| Peak Power Charge/Discharge Current | 105A | |||
| Depth of Discharge | 90% | |||
| Net Weight | 55kg | |||
| Dimension[W*D*H] | 574*228*600mm | |||
| Charging Temp. Range | 0~55℃ | |||
 Discharging Temp. Range |
-0~56℃ | |||
| Communication | CAN/RS485 | |||
| Warranty | 10 Years | |||
| Warranty Document Supplied | Yes | |||
| Calendar Life | 6000 Cycles | |||
| Protection Level | IP65 | |||
| Expansion | Up to 5 units in parallel | |||
| Color | White | |||
| Alarms | Overcharge/Overdischarge/Overcurrent/ Overtemperature/Short Circuit |
|||
| Monitoring & Protection | Each system has smart BMS, breaker embedded in system |
|||
| Pros | Can be used in both off-grid and hybrid setups, compact design, floor or wall mount |
|||
| Compatible Inverters | Victron/SMA/Goodwe/lmeon/Solis/SAJ/ Growatt/LuxpowerNoltronic/Deye etc. |
|||
| Certification & Safety Standard | CE/UN38.3/IEC62619/IEC62040 | |||
