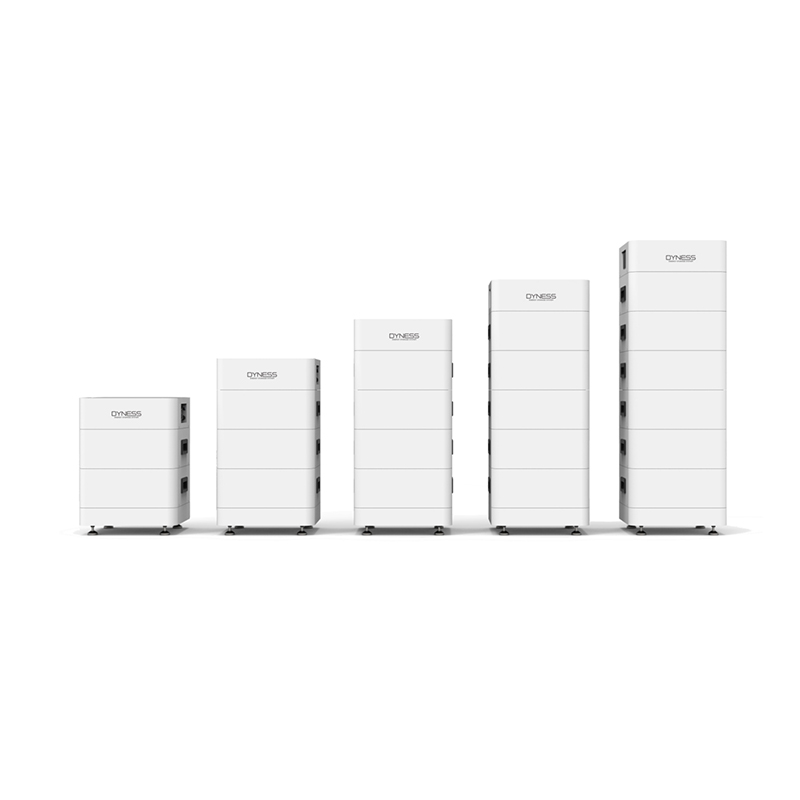

The Tower Series lithium battery is tailor made for larger residential. Modular design with advanced LiFePO4 technologies, five energy specifications up to 21.31kWh for your choice with parallel support available, high waterproof level and good heat sink, which offers you various capacities to meet more of your requirements.
The Dyness flexible landed high voltage Tower series offer stable performance and superior life cycles with advanced BDU, the exclusive design of BDU can well protect the smooth operation of the battery and improve energy efficiency, meet the needs of daily life.
• Safe and Reliable
• IP54 Protection
• Flexible Expansion
• Qucik Installation
| Technical Parameters | |||||
| Model | Tower T7 | Tower T10 | Tower T14 | Tower T17 | Tower T21 |
| Module Number | 2 | 3 | 4 | 5 | 6 |
| Nominal Capacity | 37Ah | 37Ah | 37Ah | 37Ah | 37Ah |
| Nominal Battery Energy | 7.10kWh | 10.66kWh | 14.21 kWh | 17.76kWh | 21.31kWh |
| Nominal Voltage | 192V | 288V | 384V | 480V | 576V |
| Maximum Continuous Discharge Power | 4.26kW | 6.39kW | 8.52kW | 10.65kW | 12.78kW |
| Maximum Continuous Charge Power | 4.26kW | 6.39kW | 8.52kW | 10.65kW | 12.78kW |
| Dimension|W*D*H] | 504*380*700 mm | 504*380*900 mm | 504*380*1100 mm | 504*380*1300 mm | 504*380*1500 mm |
| Net Weight | 105kg | 146kg | 187kg | 228kg | 269kg |
| Depth of Discharge | 100% | ||||
| Charging Temp. Range | 0~50°C | ||||
| Discharging Temp. Range | -10~50°C | ||||
| Communication | CAN | ||||
| Warranty | 10 Years | ||||
| Warranty Document Supplied | Yes | ||||
| Calendar Life | >6000 Cycles | ||||
| Protection Level | IP54 | ||||
| Color | White | ||||
| Alarms | Overcharge/Ovendischarge/Overcurrent/Overtemperature/Short Circuit | ||||
| Pros | Can be used in both off-grid and hybrid setups, compact design, modular expansion | ||||
| Battery Module Type | HV9637 | ||||
| Module Connection Method | Series | ||||
| Compatible Inverters | Goodwe/Solis/Hoymiles/Sermatec/ATESS/Sinexcel/Luxpower/ Sunways, more brands will be announced | ||||
| Certification | TUV/CE/IEC62619/IEC 62040/UN38.3/CEC Accredited/UL1973 | ||||
The Powerbox Pro is a type of deep cycle and high capacity lithium battery, support wall-mounted and landed two use modes, the energy can get up to 10kWh for single unit with efficient performance, meet the household electricity demand.
More
The PowerDepot H5B is main series lithium battery with efficient and durable LiFePO4 modules, offers you high safety performance, widely used in photovoltaic and home energy storage systems.
More
LV 48V(51.2V) 50Ah/100Ah Lithium Battery for Solar Power Energy Storage System
More
High Voltage Lithium-Ion Phosphate Battery storage system Battery HV 48V(51.2V) 50Ah/100Ah Lithium Battery with BMS for Solar Power Energy Storage System
More
The Tower Series lithium battery is tailor made for larger residential. Modular design with advanced LiFePO4 technologies, five energy specifications up to 21.31kWh for your choice with parallel support available, high waterproof level and good heat sink, which offers you various capacities to meet more of your requirements.
More
